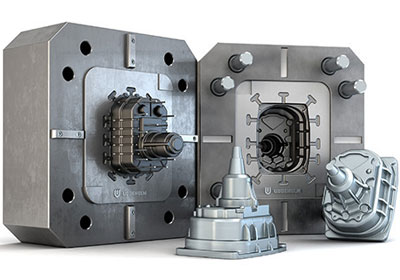

A single or multi cavity of product is prepared in form of metal with adding all the contraction of wax & metal to make wax pattern, which will match shape & dimension of casting parts.

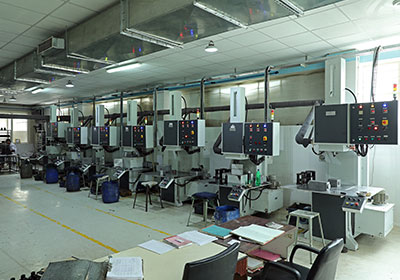

Virgin or Re-Claimed wax in semi liquid form is injected in single or multi-cavity die / tool by using Wax injection press (Fully Auto, Semi Auto, and Manually Operated). These processes will give wax pattern which will be the model of parts intended for casting.

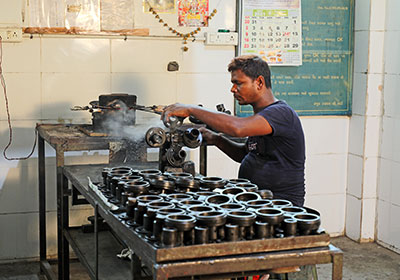

Clean wax pattern are assembled on runner with all handling and knock off arrangements for next process. This process is backed by mothering Engineer.

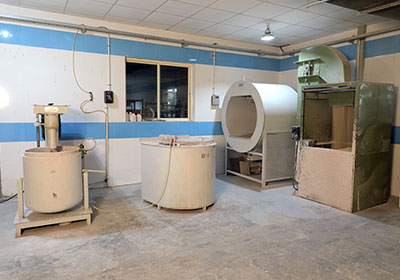

First, Primary Coating applied on wax pattern assembly by using ceramic slurry & sand, surface finish is depend up primary coating & wax pattern surface. Then repeated back-up coating will apply with defined drying time to form a self-supporting "shell".

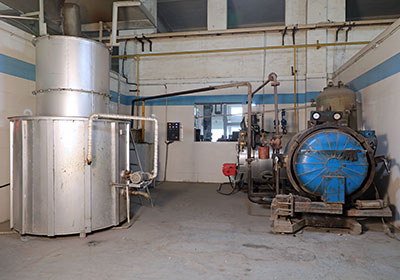

At De-waxing stage wax are melted out by applying heat (Using Auto Clave). Now, shells having cavities inside.

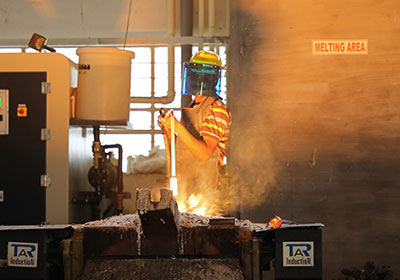

Shells are pre-heated at specific temperature & time. Specific metal are melt in induction melting furnace. De-gassed & De- slaged molten metal poured in pre-heated shells at specific temperature.

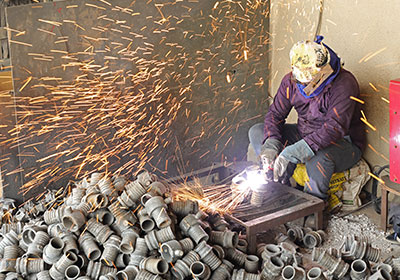

Separated parts are heat-treated; gate grinding & surface cleaning depending up on requirement of finish products.

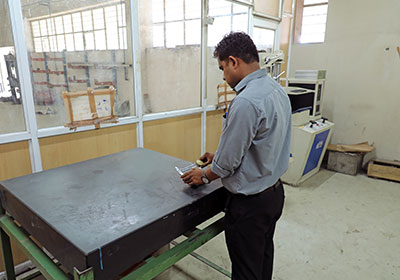

Finish products of investment casting are inspected visually & dimensionally as per customer supplied drawing, purchase order & technical data sheet.

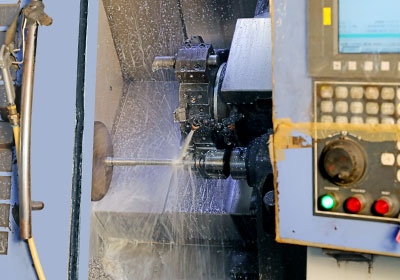

After final inspection of casted parts, machining operation to be done on parts as per machining drawing by conventional and CNC machines.
